Applications

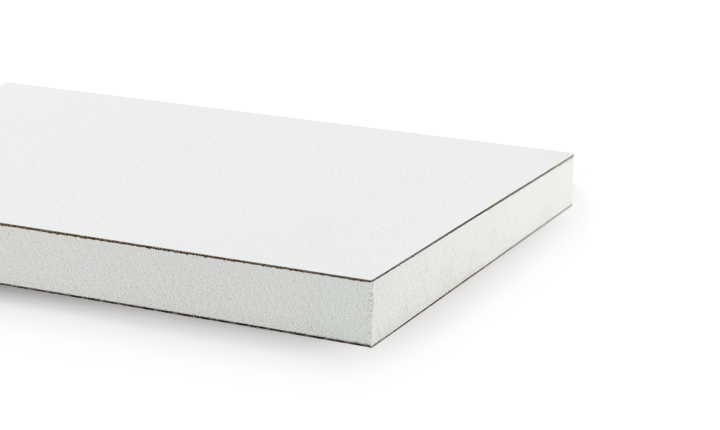

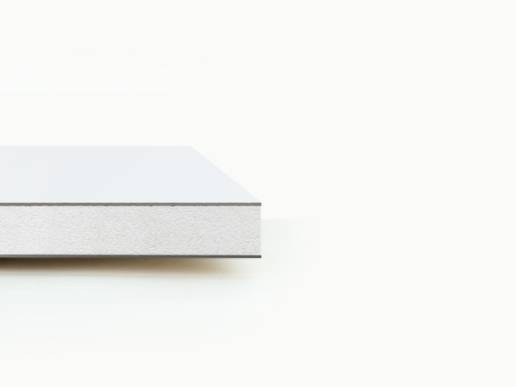

Pluratect Marine Plus™ is the noncombustible, water repellent panel for fire protection. It is ideal for installations in wet areas.
Among the applications:
Boatbuilding
Class B and C partitions and bulkheads, Class B15 flooring, noncombustible siding and furnishings, public areas, standard and luxury cabins, extremely humid environments (e.g., kitchens, bathrooms, swimming pools, spas)
Size
- Rectangular panels (ratio 2:1)
Standard sizes
- 2500 x 1220 mm (rough)
- 2420 x 1200 mm (with laminate)
- 3050 x 1220 mm (rough)
- 3030 x 1200 mm (with laminate)
Standard thicknesses
- 12.5 and 19 mm (rough)
- 13.9 and 20.4 mm (with laminate)
Features
- Reaction to fire: non-combustible, MED certified modules B and D
- Reduced water absorption: < 5%
- Uniformity: smooth and uniform surface, suitable for laminate bonding
- Mechanical performance: high ductility and resistance to deformation
- Recyclable 100%
- Ease of processing: can be easily cut using standard cutting tools or circular blades. The laminated panel version requires the use of specific blades.
More information
- Pluratect Marine Plus can be supplied raw or with fire retardant MED laminate faces.
- For a class B15 installation, we recommend the use of special steel profiles. Available upon request.
Certifications and marking
Technical information
The bondings of the laminated surfaces are made with class E0 adhesives
Availability
Upon request
Lead time
3/4 weeks
Minimum order
1 panel.
Download & Social
- Product Details (PDF - 1.36Mb)
- Safety Data Sheet (PDF - 3.41Mb)
- Certification (PDF - 3.41Mb)
| Thickness | size | Weight |
|---|---|---|
| mm | mm | kg/m2 |
| 12,5 | 2500x1220 | 8,00 |
| 19 | 2500x1220 | 12,16 |
| Thickness | Size | Weight |
|---|---|---|
| mm | mm | kg/m2 |
| 13,9 | 2420x1200 | 10,10 |
| 20,4 | 2420x1200 | 14,26 |
Download
Download the Pluratect Marine Plus™ data sheet with dimensions, weights and useful information. English version.
Download the Pluratect Marine Plus™ data sheet with dimensions, weights and useful information. English version.
Finishing
All our plywood, sandwich and specialty panels can be delivered with different kinds of surface finishing, according to their destination.
