Applications and typologies


Often used in combination with Isophon Light ™ panels, Isophon bars serve to reduce and dampen vibrations and noise, resulting from engine propulsion, aboard the most prestigious boats.
The bars are available in three different typologies to meet the needs of vibration reduction both on the floor and on the wall, thus guaranteeing the highest acoustic comfort inside the rooms.

Isophon Floor

Ideal to make anti-vibration leveling floors for medium and large boats. Normally, the bars are laid down in grid pattern onto the floor, at 50 cm intervals, and to achieve the best soundproofing performance, they are covered with Isophon Light™. Excellent to isolate underfloor, decks and floors in touch with or very close to noise sources.


Isophon Floor Single - Side

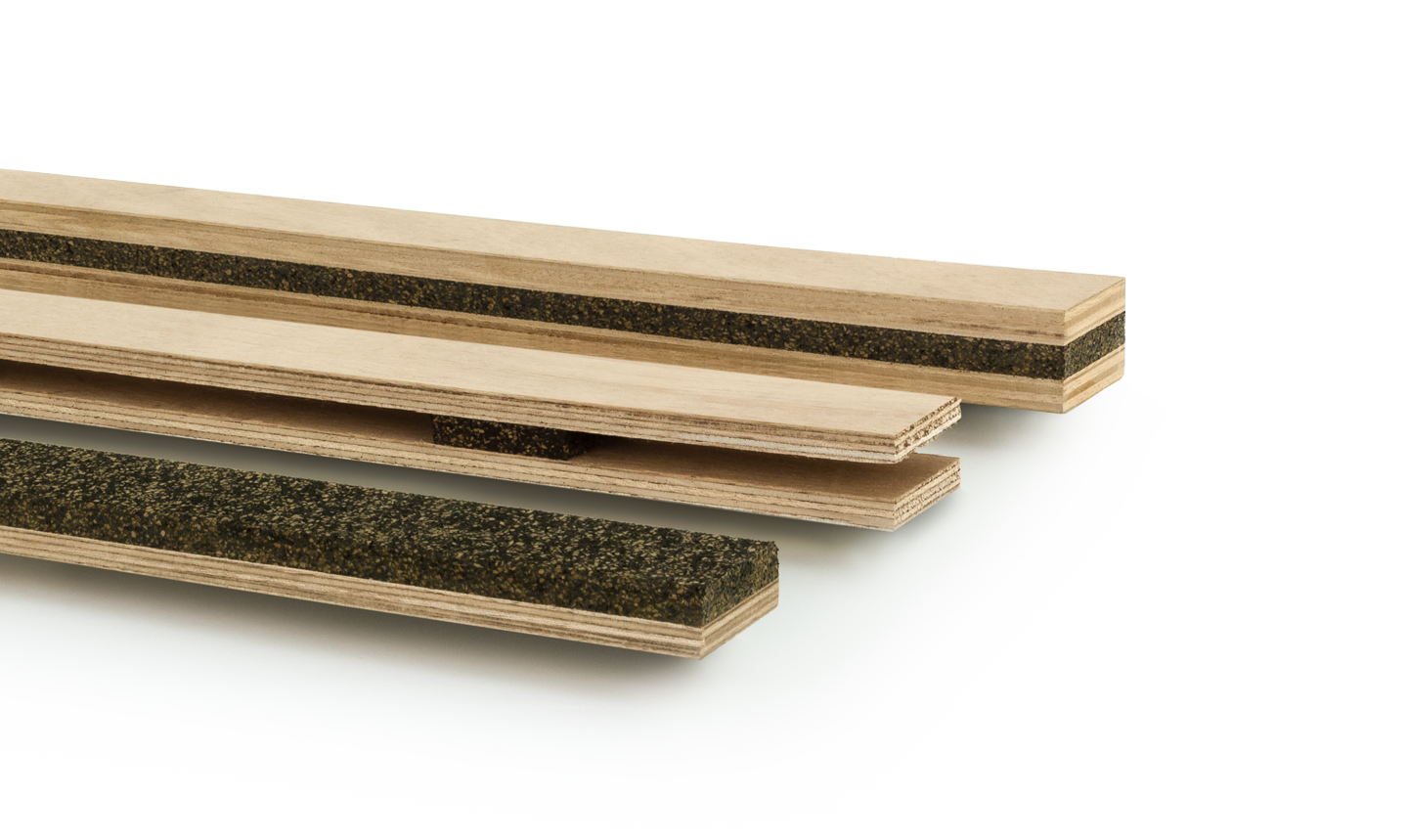

The single-side version offers the same features as the Isophon Floor™ bar, but only one plywood face. Therefore, rubber is glued directly onto the raw surface of the underfloor (fiberglass, aluminum, steel). This solution is preferable when a thinner product has to be processed or when the surface is uneven.


Isophon Wall

The Isophon Wall™ variant is designed to be applied vertically onto walls and bulkheads next to the noise source. Combined with the Isophon Light™ panel, it is a perfect solution to soundproof and fight the propagation of vibration between environments with different destinations. Isophon Wall™ bars can be delivered pre-drilled and ready to be installed.

Request Quotation
Size
  • Bars / Strips
Standard size
  • 3100 x 50 mm
  • 2500 x 50 mm
Standard thicknesses
  • From 18 to 50 mm
See all thicknesses and compositions
Vibrations isolation
Sound insulation
Dimensional stability
Lightweight
Weight
Price

Features


  • Excellent Anti-vibration properties
  • Weight from 0.40 kg/ml  (for 18 mm thickness - Single-Side)
  • Excellent durability in environments with high humidity and salinity

Composition


Certifications and marking


How to install Isophon bars


Technical information


The parts in Okoume are manufactured in compliance with NF CTB-X exterior plywood standards. They have obtained the CE marking for structural use in external environment, according to EN 13896 standards.
According to specific needs, Isophon Bars™ can be made of Mixed FSC-certified or FSC 100% Okoume marine plywood faces.
The gluing of different types of Okoume plywood is in Class 3 – E1, therefore resistant to boiling and ideal for external uses according to EN 314.2 standards.
The Sandwich panels assembling (plywood + core layer) is made with melamine adhesive in Class E0 NAF – No Added Formaldehyde.

Nota Bene - Class E0

Isophon Bars™ can be requested entirely in class E0 if faces are made with RINA Okoume plywood of our production.

Availability

High

Lead time

Very quick

Minimum order

1 panel.

Request Quotation

Download & Social


thicknesses, compositions and weights


ThicknessConfigurationWeight
mmmmkg/m
268+10+80,6
3010+10+100,7
4015+10+150,9
368+20+80,8
4010+20+100,9
5015+20+151,2
ThicknessConfigurationWeight
mmmmkg/m
268+10+80,6
3010+10+100,7
4015+10+150,9
368+20+80,8
4010+20+100,9
5015+20+151,2
ThicknessConfigurationWeight
mmmmkg/m
188+100,4
2010+100,5
2515+100,6
288+200,6
3010+200,7
3515+200,8
